Product Detail

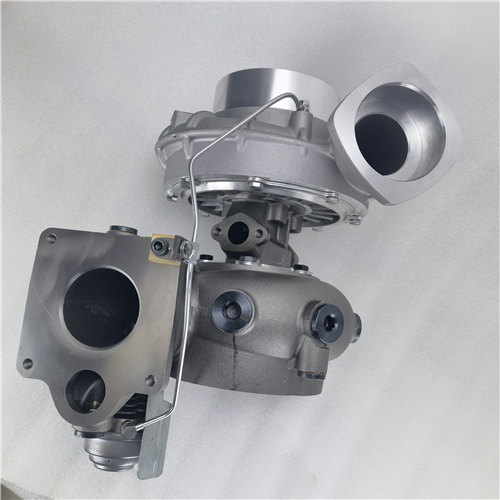

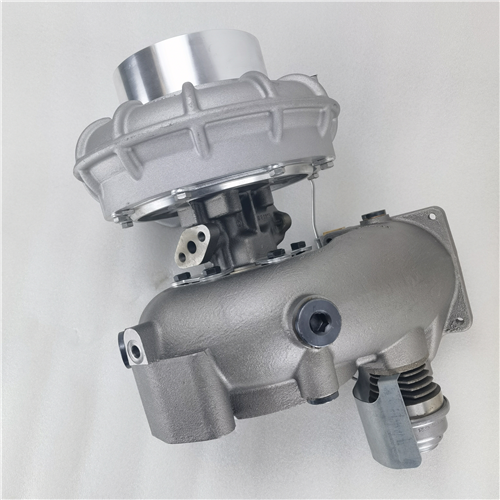

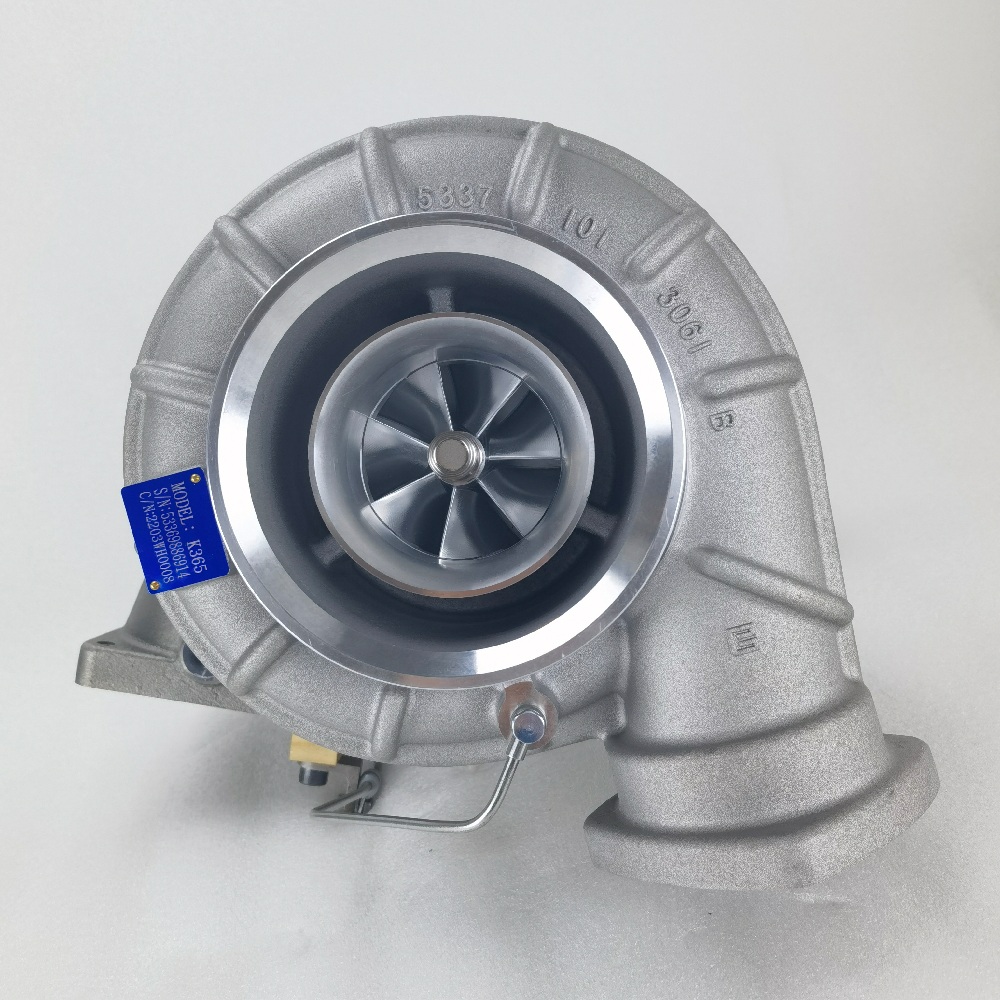

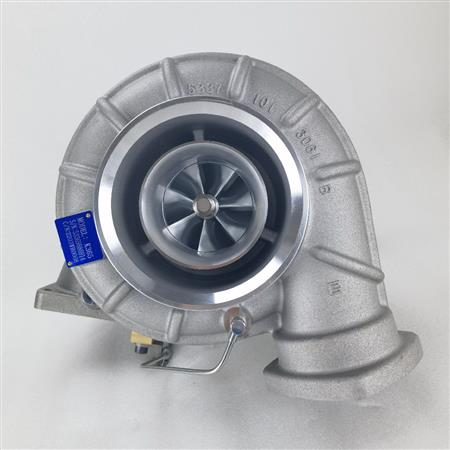

K365 53369706914 53369886914 0080960299 80960299 turbocharger for MTU Ship 24.0L 12V2000M91 engine





Turbo Details

Part Number 53369886914
Previous Version 5336-988-6914, 5336 988 6914
OE number 0080960299, 80960299
Year 2001-02
Manufacturer Part Number 53369706914, 5336-970-6914
CHRA N/A
Turbo Model K365-4669OODKB18.62GAAXB
Engine 12V2000M91
Displacement 24.0L, 2400 ccm
KW 1119/1521
RPM Max 2350
Fuel Diesel
Angle α (compressor housing) 51°
Angle β (turbine housing) 18°
Bearing Housing 53361500008 $859.21
Turbine Wheel 53361205004
Comp. Wheel (milled aluminium) 53371232031
Back plate 53371515719
Heat shield Number 53361652003
Repair Kit N/A
Turbine Housing 53361007405
Compressor Cover 53371003015
Turbine Housing AR 18
Waste gate valve 58061100221
Settings Waste gate (pressure) 2 65 bar
Settings Waste gate (lift shaft) 1.40 mm
NOTE Inter-cooler




Applications

2002-06 turbocharger used for MTU Ship with 12V183TE94 USA Engine

2001-02 turbocharger used for MTU-DDC Ship with 12V2000M91
