  •  2016-20 Nissan Titan CEV8D1 Platinum Turbo TF035HS core 144D1EZ49ARE Cartridge

2016-20 Nissan Titan CEV8D1 Platinum Turbo TF035HS core 144D1EZ49ARE Cartridge

  • 2016-20 Nissan Titan CEV8D1 Platinum Turbo TF035HS core 144D1EZ49ARE Cartridge
  • Disclaimer: Turboful is an independent company and is not affiliated with any of the manufacturers. All information are for references only. Products presented on this website are not to be confused with any of the products or trademarks of any OEM company. All parts listed to fit these manufacturers' models are replacement aftermarket parts unless stated. In no way is it implied that the products listed to fit these manufacturer’s models are original equipment parts, rather they are replacement aftermarket parts and accessories.
  • *Important* Above part number is for reference only.  Make sure your equipment is not machined. The most reliable way to make sure the model of turbocharger is finding the part number from the nameplate of your old turbocharger. You can sent us your photos with any questions or concerns, please feel free to contact us. Well get you back within 24 hours.
  • *Return Policy* If you have never installed a turbocharger before, we highly recommend having an experienced professional perform the installation. Turboful Inc. is not cover for damages to the turbocharger assembly or vehicle due to installation error.
  • *Warranty* Warranted to be free from defects and material and workmanship for a period of 30 days from the date on purchased. Damage due to transit, improper installation, misuse, field alterations, lack of maintenance, improper storage, neglect, accident, or any other reason of any description not under the control of the seller is excluded from this limited warranty.

Product Detail

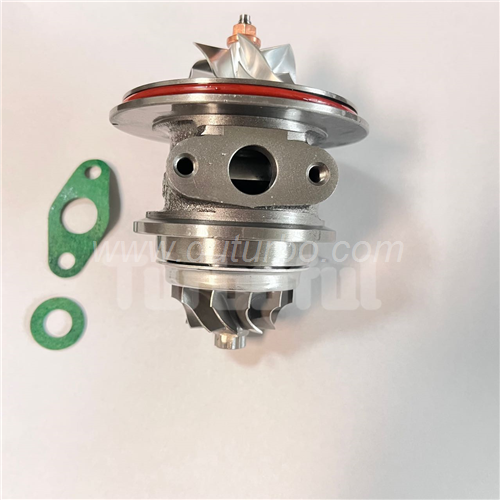

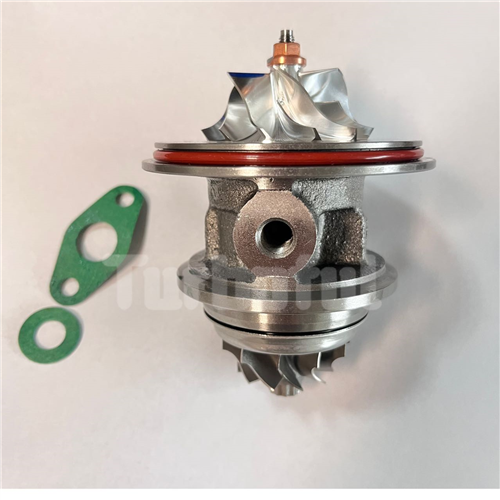

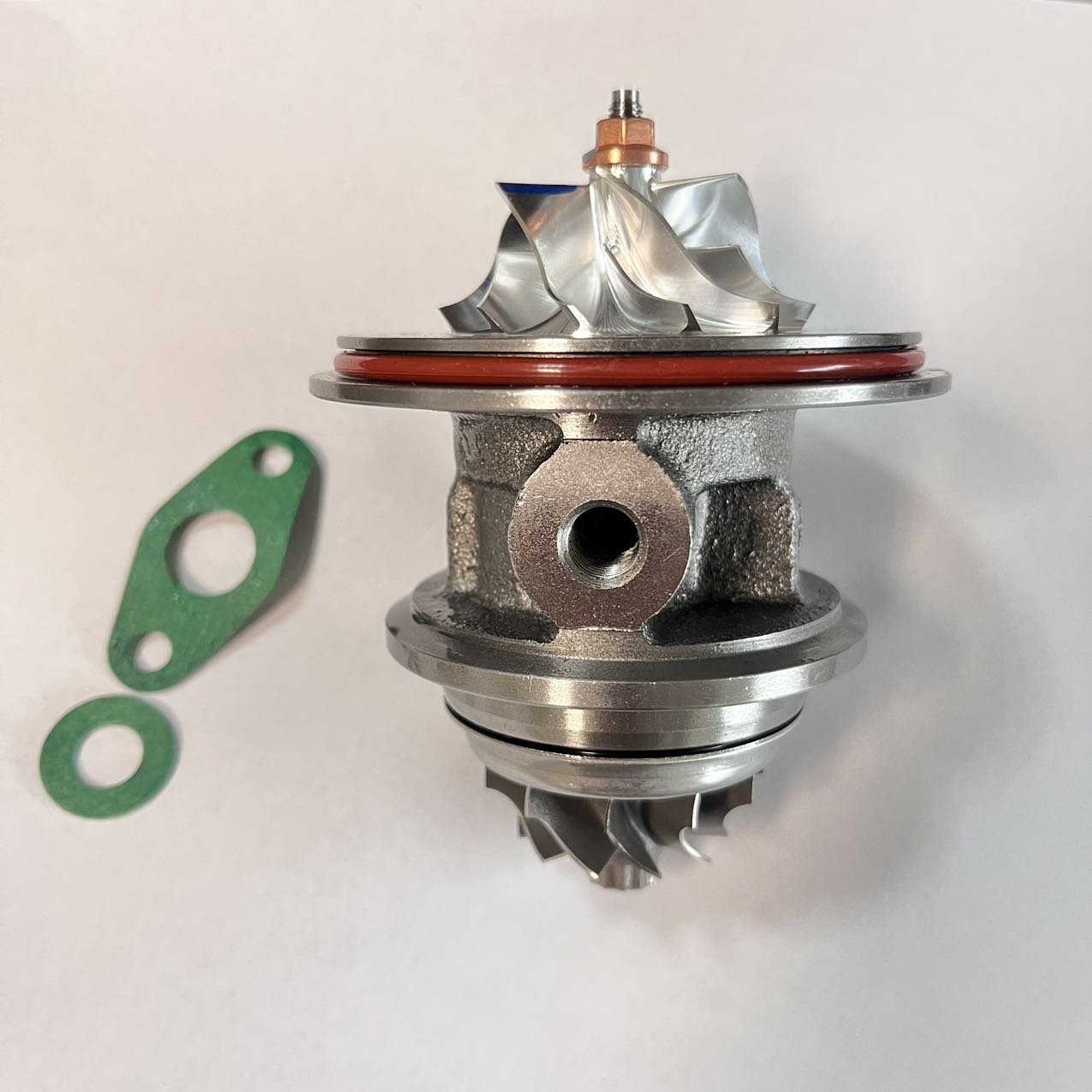

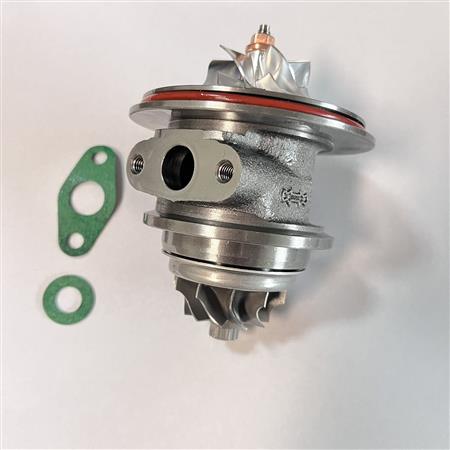

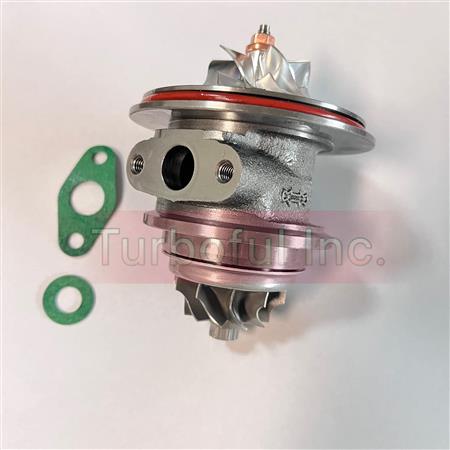

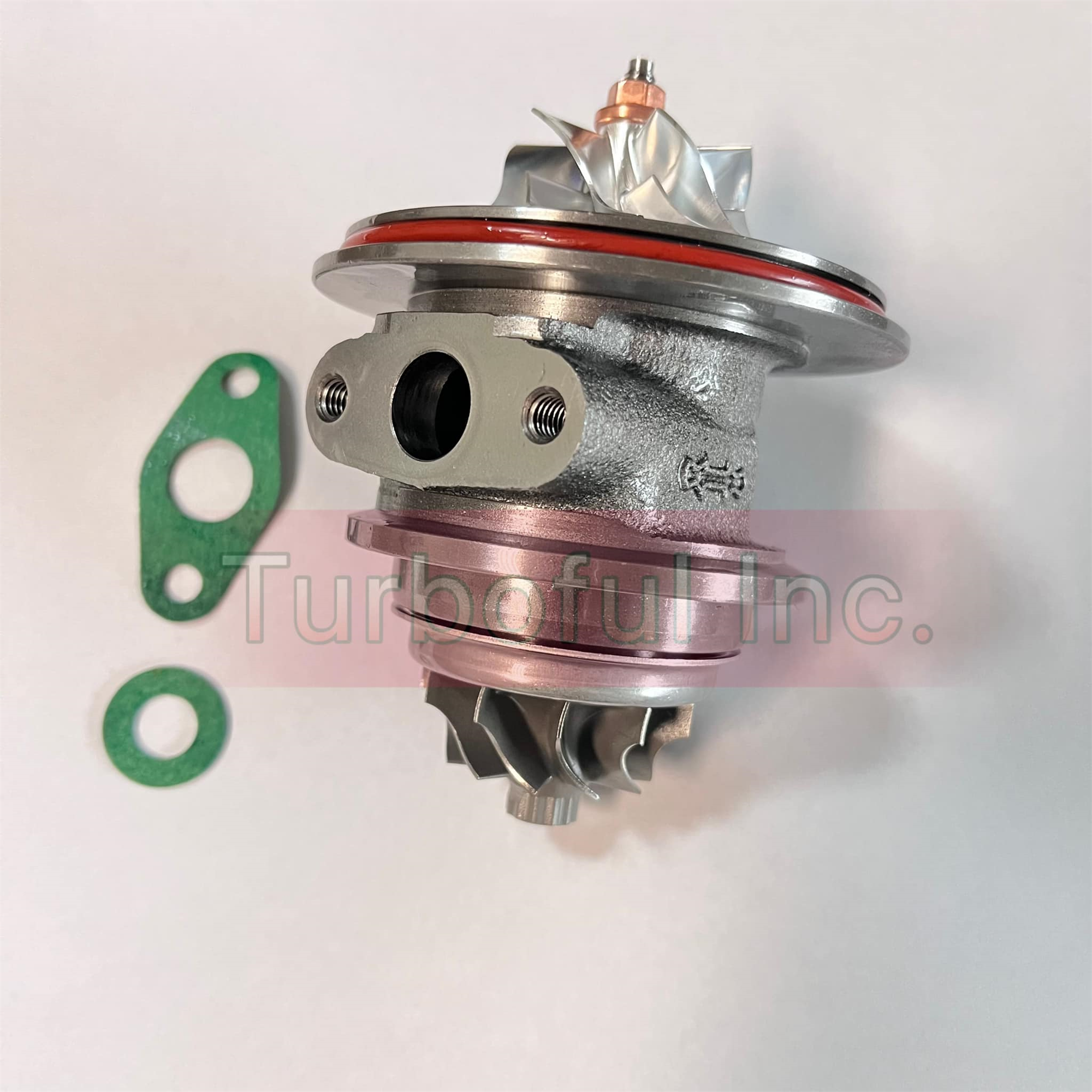

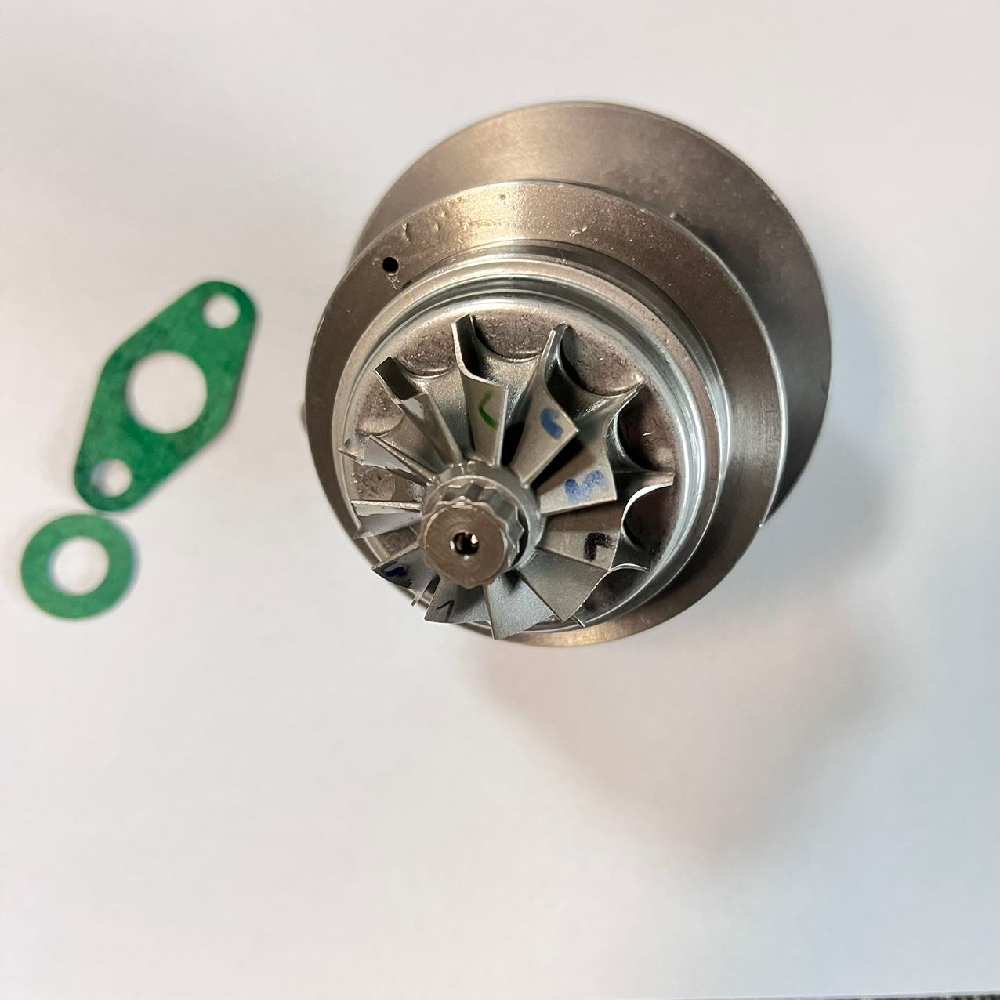

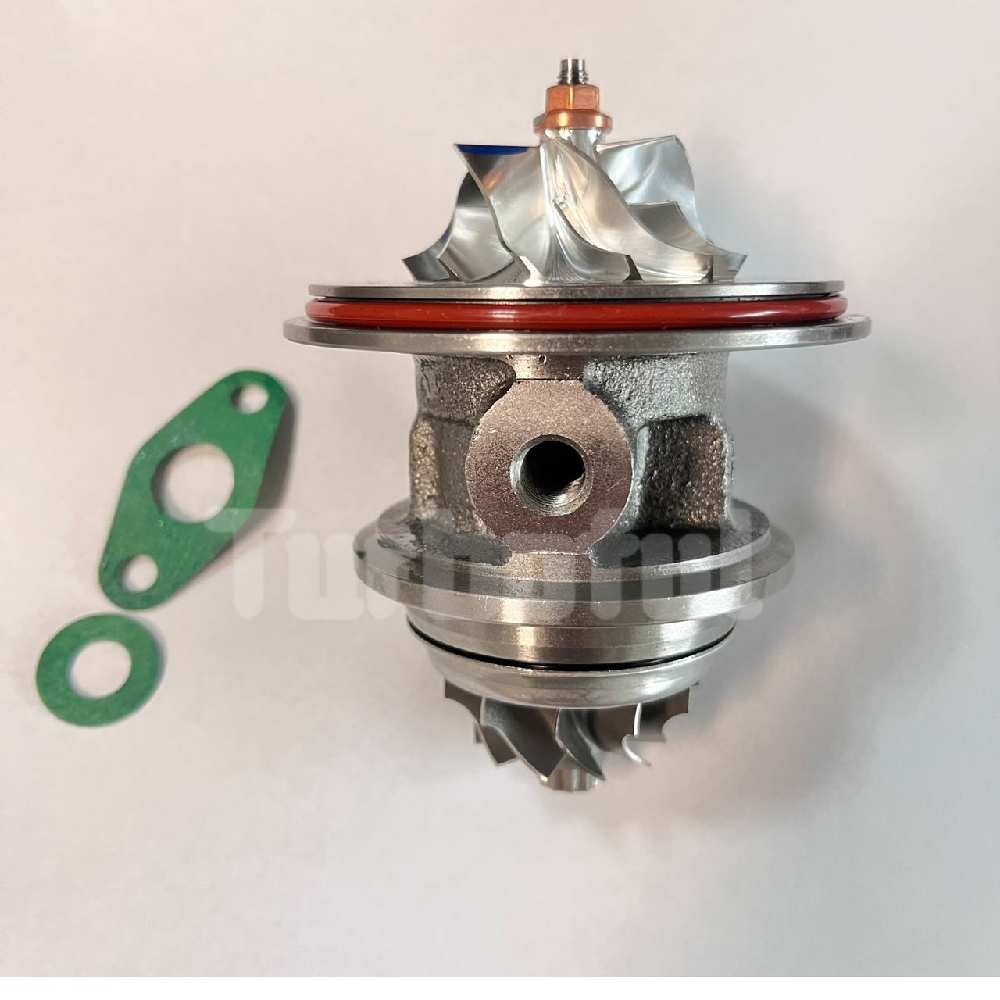

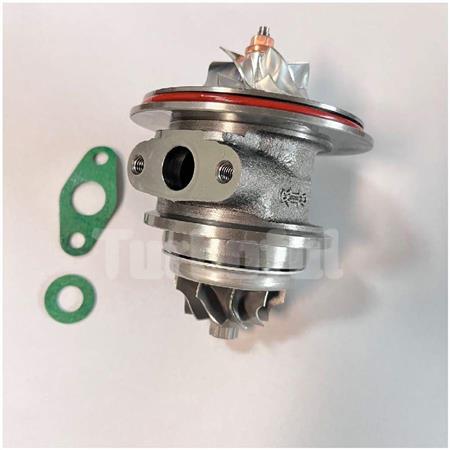

 2016-20 Nissan Titan CEV8D1 Platinum Turbo TF035HS core 144D1EZ49ARE Cartridge





Product Description


Part Number 144D1EZ49ARE
Previous Version 144D1-EZ49A 144D1-EZ49ARE 144D1-EZ49CRE 144D1EZ49A 144D1EZ49ARE, 144D1EZ49BRE, 144D1EZ49CRE
OE number 14031666-101, 14031666-102, 14031666101, 14031666102
Year 2016-20
Description Nissan Titan CEV8D1 Platinum, PRO-4X, S, SL, SV Twin Turbo
CHRA N/A
Turbo Model TF035HS + HX55
Engine ND30D
Displacement 5.6/5.0L, 5000/5552 ccm, V8 Cylinders, DOHC
Fuel Diesel, Gas
Large Turbo Holset (HX55)
Bearing Housing 3795389 (3789245)(Oil Cooled)
Turbine Wheel 3782771 (Ind. 56.35 mm, Exd. 68.65 mm, 11 Blades)
Comp. Wheel 4035879 (3599016, 4043377, 3596097)(Ind. 59.99 mm, Exd. 86.05 mm, Trm 5.86, 7+7 Blades, Superback)
Back plate 3530923
Heat shield 3519302
Repair Kit NEW IN STOCK
Gasket (oil outlet) 15196EZ40B (15196EZ40C)
Gasket (Turbine Inlet) 14415EZ40A
Gasket (Turbine outlet) 14445EZ40A
Speed Sensor 144A3EZ40A (144A3EZ40B)
Actuator Valve 14480EZ40A (14480EZ40B, 14480EZ40C)
Small Turbo Mitsubishi (TF035HS)
Bearing Housing 49335-08410 (Oil Cooled)
Turbine Wheel (Ind. 32.21 mm, Exd. 42.23 mm, 11 Blades)
Comp. Wheel (Ind. 36.76 mm, Exd. 49. mm, 6+6 Blades, Superback)
Back plate 49135-00044 (1401635300)
Heat shield 49135-00020 (49135-19100)(1401635343)
Repair Kit 49135-80000 (49135-TFO35)(1401635751)







Applications

2016-20 Nissan Titan CEV8D1 Platinum with 5.6L, 5552 ccm, V8 Gas DOHC Engine

2016-20 Nissan Titan CEV8D1 PRO-4X, S, SL, SV with 5.0L, 305 Cu. In. V8 Diesel DOHC Engine
