  • S400 177287 RE508022, RE506333, RE525341, RE507021 171558, 175252, 173342 6125H

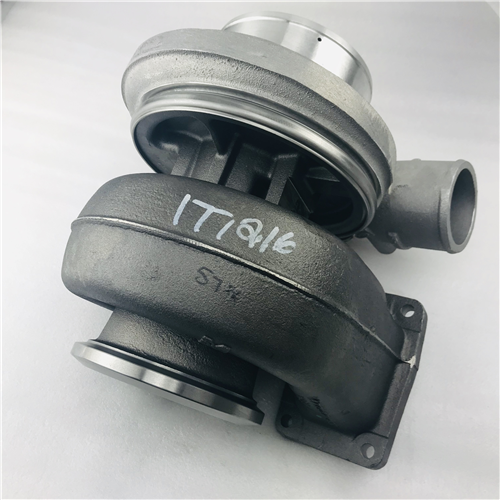

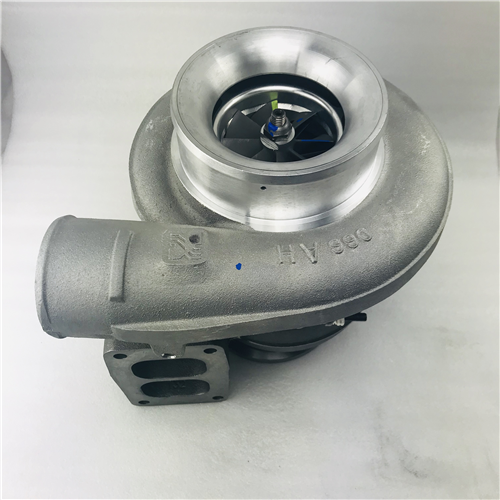

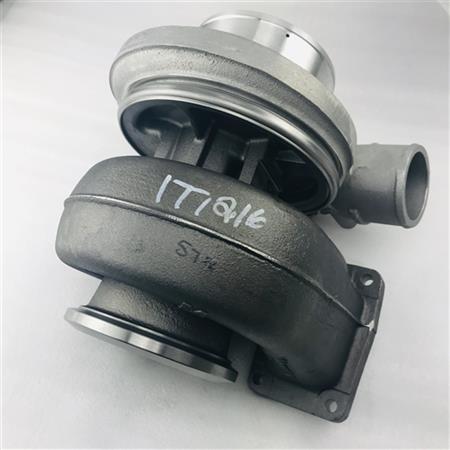

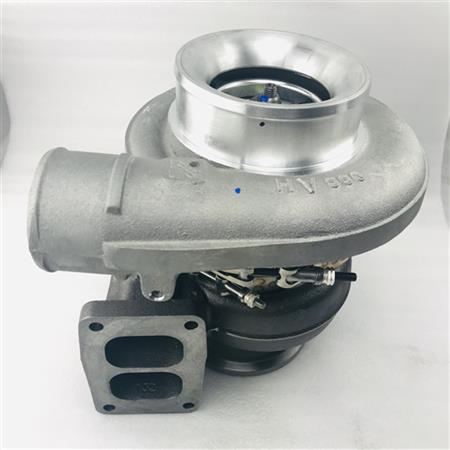

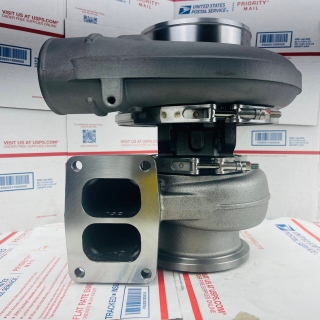

S400 177287 RE508022, RE506333, RE525341, RE507021 171558, 175252, 173342 6125H turbocharger for Deutz S650 Tractor, John Deere Agricultural vehicle, Industrial Engine

  • S400 177287 RE508022, RE506333, RE525341, RE507021 171558, 175252, 173342 6125H
  • Disclaimer: Turboful is an independent company and is not affiliated with any of the manufacturers. All information are for references only. Products presented on this website are not to be confused with any of the products or trademarks of any OEM company. All parts listed to fit these manufacturers' models are replacement aftermarket parts unless stated. In no way is it implied that the products listed to fit these manufacturer’s models are original equipment parts, rather they are replacement aftermarket parts and accessories.
  • *Important* Above part number is for reference only.  Make sure your equipment is not machined. The most reliable way to make sure the model of turbocharger is finding the part number from the nameplate of your old turbocharger. You can sent us your photos with any questions or concerns, please feel free to contact us. Well get you back within 24 hours.
  • *Return Policy* If you have never installed a turbocharger before, we highly recommend having an experienced professional perform the installation. Turboful Inc. is not cover for damages to the turbocharger assembly or vehicle due to installation error.
  • *Warranty* Warranted to be free from defects and material and workmanship for a period of 30 days from the date on purchased. Damage due to transit, improper installation, misuse, field alterations, lack of maintenance, improper storage, neglect, accident, or any other reason of any description not under the control of the seller is excluded from this limited warranty.

Product Detail

Part Number:177287

OE number:RE508022, RE506333, RE525341, RE507021, 477287

Description:Deutz S650 Tractor, John Deere Agricultural vehicle, Industrial Engine

CHRA:176654

Manufacturer Part Number:171558, 175252, 173342

Turbo Model:S400-110H58U-AHM/1.32 96TM1, S400S058

Engine:6125, 6125H

Engine Manufacturer:John Deere

Displacement:12.5L, 12500 ccm

KW:410/550

Fuel:Diesel

Bearing Housing 172540

Turbine Wheel 171689 (Ind. 95.7 mm, Exd. 88. mm, 10 Blades)

Comp. Wheel 171984 (Ind. 80.34 mm, Exd. 115.82 mm, 8+8 Blades, Superback)

Repair Kit (thrust bearing):14007110003

Turbine Housing Config: Twin

Compressor Cover:179178

Turbine Housing T6

Turbine Housing AR:1.32

NOTE:Inter-cooler (also called S480 SX4-110/96)
