  • S400SX4 S400 S480 480 80mm  T6 Twin Scroll 1.32 A/R TurboCharger 171702

S400SX4 S400 S480 171702 Turbo Detroit Diesel Truck Series 60 12.7L Twin scroll

  • S400SX4 S400 S480 171702 Turbo Detroit Diesel Truck Series 60 12.7L Twin scroll
  • part number : 466713-0005, 466713-5005, 466713-5005S, 466713-0006, 466713-5006, 466713-5006S
  • part numbers : 4667135 4667135005 4667135005S 4667135006 4667135006S 4667135007S 4667136 4667137 4667139005 4667139006 8S04-100-E40 8S04100E40 R23518588 R23518597
  • Part NO.:466713-5 466713-5005 466713-5005S 466713-5006 466713-5006S 466713-5007S 466713-6 466713-7 466713-9005 466713-9006 4667130005 4667130006 4667130007
  • OEM: 171702-FP 171702FP 23518588 23518588M 23518597 23518688M 23523197 2585838C91 40-30406AN 466713-0005 466713-0006 466713-0007
  • Application: Detroit Diesel Series 60
  • OEM: 14030406-101 14030406-102 14030406-103 14030406-104 14030406-105 14030406-106 14030406101 14030406102 14030406103 14030406104 14030406105 14030406106
  • Displacement 12.7L
  • ENGINE MODEL: Series 60
  • Disclaimer: Turboful is an independent company and is not affiliated with any of the manufacturers. All information are for references only. Products presented on this website are not to be confused with any of the products or trademarks of any OEM company. All parts listed to fit these manufacturers' models are replacement aftermarket parts unless stated. In no way is it implied that the products listed to fit these manufacturer’s models are original equipment parts, rather they are replacement aftermarket parts and accessories.
  • *Important* Above part number is for reference only.  Make sure your equipment is not machined. The most reliable way to make sure the model of turbocharger is finding the part number from the nameplate of your old turbocharger. You can sent us your photos with any questions or concerns, please feel free to contact us. Well get you back within 24 hours.
  • *Return Policy* If you have never installed a turbocharger before, we highly recommend having an experienced professional perform the installation. Turboful Inc. is not cover for damages to the turbocharger assembly or vehicle due to installation error.
  • *Warranty* Warranted to be free from defects and material and workmanship for a period of 30 days from the date on purchased. Damage due to transit, improper installation, misuse, field alterations, lack of maintenance, improper storage, neglect, accident, or any other reason of any description not under the control of the seller is excluded from this limited warranty.

Product Detail

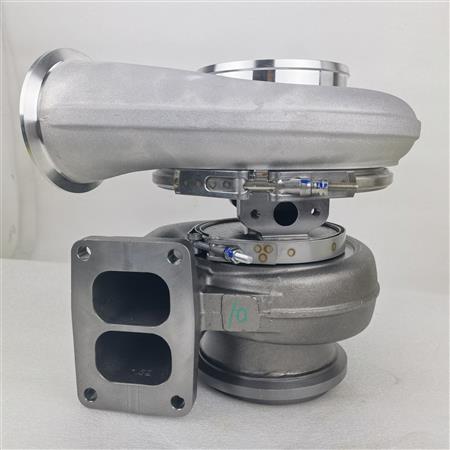

S400SX4 S400 S480 171702 Turbo Detroit Diesel Truck Series 60 12.7L Twin scroll



Part Number 171702
OE number 23518588, 23518597, 23523197, 2585838C91
Year 2000-08
Description Truck, Gen Set
Manufacturer Part Number 466713-0005, 466713-5005, 466713-5005S, 466713-0006, 466713-5006, 466713-5006S
CHRA 171703 (171703R, 471703)(1000070097)
Turbo Model S400 S400S062 S480
Engine DDC-MTU Series 60
Displacement 12.7L, 12700 ccm
KW 373 kW/500 HP, 410 kW/550 HP
Fuel Diesel

Description:

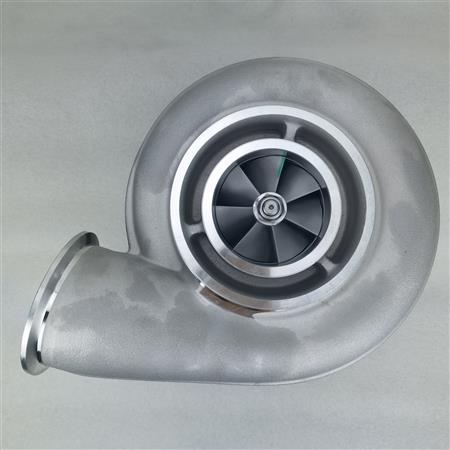

Billet compressor wheel with extended tip technology for the ultimate in aerodynamics

80mm Billet Compressor Wheel

96mm*88mm Inconel 713 turbine wheel for high-temperature operation

T6 Divided turbine housings in 1.32A/R with 5″ V Band Outlet 5.75 OD Marmon flange

-Item Details:
Billet Compressor Wheel: 80/113mm, 7+7

Turbine Wheel: 96/88mm

Turbine Housing: 1.32A/R Divided T6

Compressor Housing Outlet : S400 Vband

Turbine Housing Outlet: 5″ Marmon Discharge

Inlet Flange: T6 Divided

Reference Part #: 171702

Applications

2000-08 turbocharger for Navistar, International Harvester Truck with DDC-MTU Series 60 Engine
2000-08 turbocharger for Truck, Gen Set with DDC-MTU Series 60 Engine
